60W Ip66 Waterproof LED Street Lighting Aluminum Die Casting Housing

Brand Name : Leyond

Model Number : LY-ST81060XX

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000pcs/mon

Delivery Time : 7-10 working days

Packaging Details : Carton package

Beam Angle : 150*80 degree

Product Name : LED Street light

Warranty : 5 years

High efficiency : 160lm/w

Power : 60W

Chip brand : 5050

Driver : Meanwell

Contact Now

60W Ip66 Waterproof LED Street Lighting Aluminum Die Casting Housing

Ip66 Waterproof Outdoor Aluminum Die Casting Housing Fixture 60W Led Street Light
Features

  • The shell adopts die-casting integral molding, which has higher safety and longer life.
  • The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
  • The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
  • Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
  • The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
  • The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
  • Waterproof and dustproof grade: IP66, protection grade IK10;
  • The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.

Specification:

Par NO
Parameter

 LY-ST81020XX LY-ST81030XX LY-ST81040XX LY-ST81050XX LY-ST81060XX
Input voltage AC100V～277V 50/60HZ / DC12-24V
POWER(W) 20W 30W 40W 50W 60W
Luminous flux(lm) 3200 4740 6200 7650 9000
Chip Brand LUXEON5050
LED Quantity (pcs) 18
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) ＞160 ＞158 ＞155 ＞153 ＞150
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) ＞50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L580*W180*H106mm (L22.83*W7.09*H4.17Inch)
Net Weigh(kg) 2.5kg
Package Size(mm) L614*W222*H162mm (L24.17*W8.74*H6.38inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 3.3
Installation height(m) 4-8


Distribution Curve (60W)
60W Ip66 Waterproof LED Street Lighting Aluminum Die Casting Housing

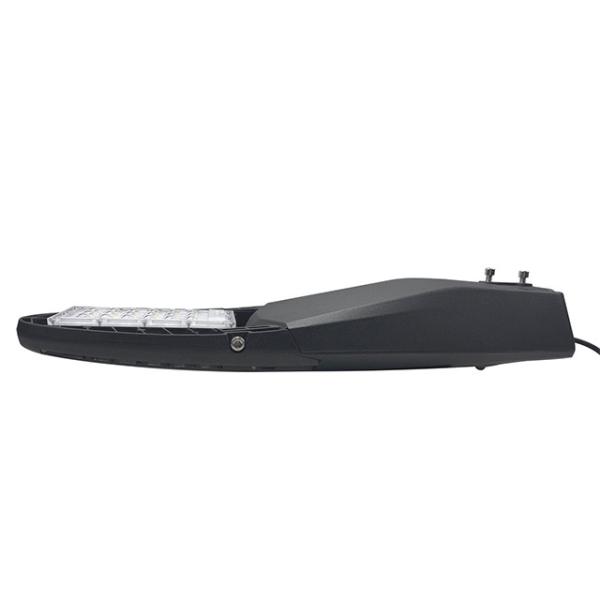

Outlook:
60W Ip66 Waterproof LED Street Lighting Aluminum Die Casting Housing
Package:

Name Size Quantity N.G G.W
Inner box

L614.0*W222.0*H162.0mm
L24.17*W8.74*H6.38inch

 1pcs 2.5kg 3.3kg
Outer box

L632.0*W456.0*H348.0mm
L24.88*W17.95*H13.70inch

 4pcs 10.0kg 14.2kg


Notes:
This product provides a 5-year warranty period from the date of purchase. During the warranty period, if the product fails under normal use, the company will provide free maintenance services. During the warranty period, please strictly abide by the product usage specifications:
1. Before use, please read the installation manual in detail for correct installation;
2. Please check carefully before use. If any abnormal phenomenon is found during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will be deemed to automatically give up warranty

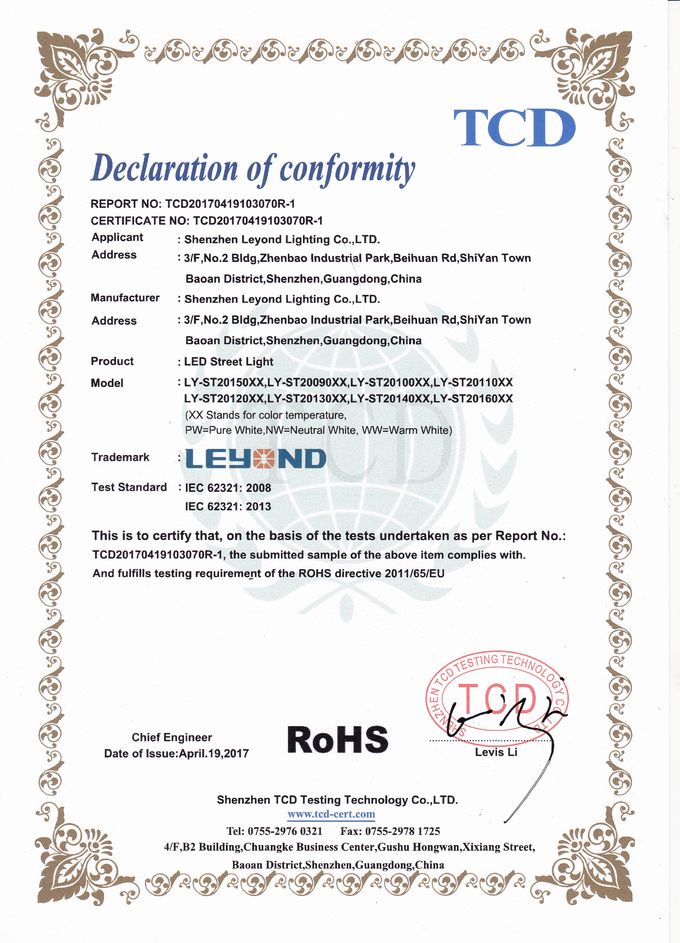

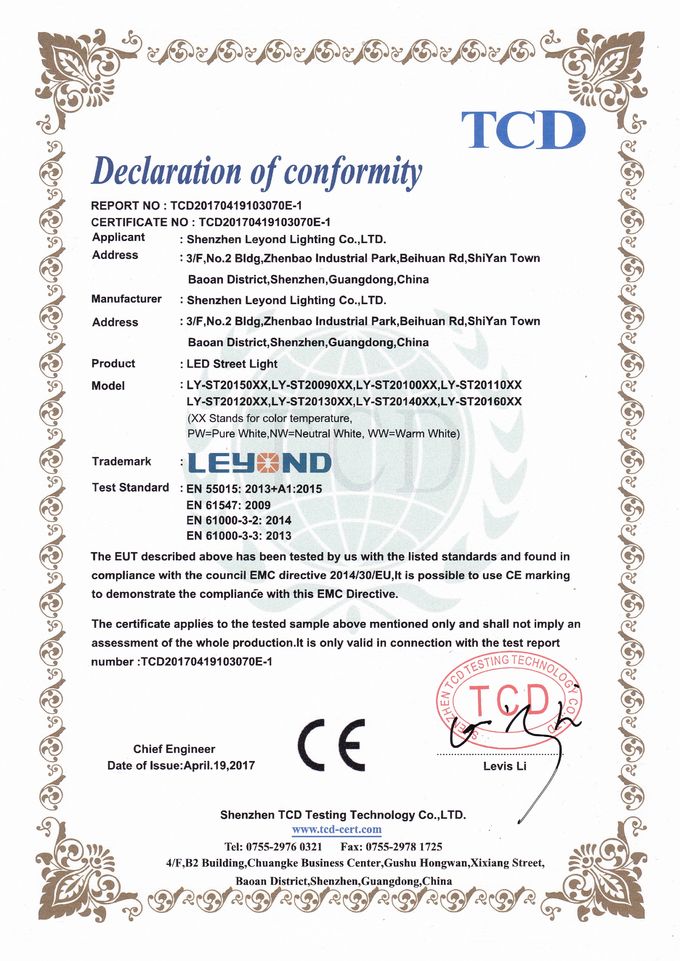

Cetification:

Our products are exported to Europe, Americas, Africa and other Asian countries with CE, EMC, LVD, RoHS, CB, ENEC, NOM, TISI and SASO certificates.
Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers,establishing long-term cooperative relationship with them.
60W Ip66 Waterproof LED Street Lighting Aluminum Die Casting Housing
60W Ip66 Waterproof LED Street Lighting Aluminum Die Casting Housing
