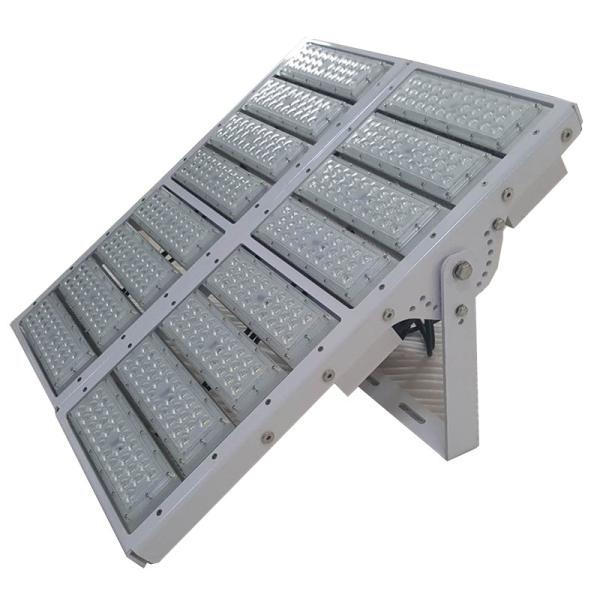

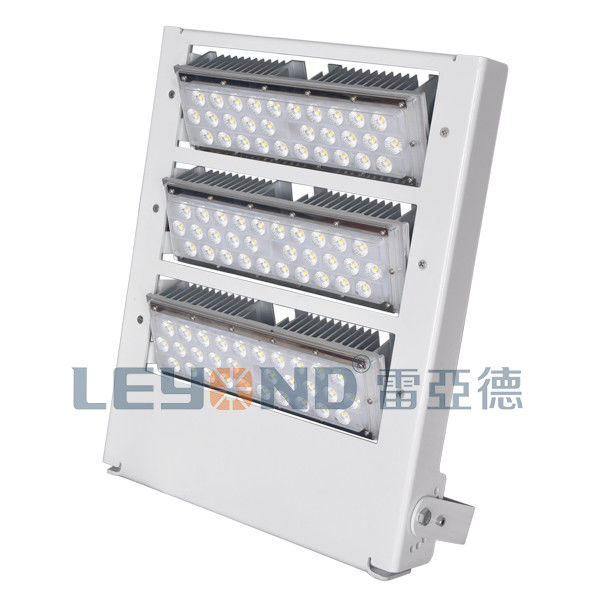

Waterproof high power 1000w Led Stadium Flood lights High Efficiency 160lm/w
Features:
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2. There are 25°,60°, 90° beam angle options for the Lens.
3. High luminous efficiency,Whole lamp output light effiency >160LM/W.
4. Die-cast aluminum with Good heat dissipation
5. World top class Meanwell Driver, 5 years warranty
6. IP66 waterproof design for outdoor application.
Technical parameter:
Input Voltage:AC100~240V 50/60Hz
Power Factor:0.98
Power Efficiency: ≥88%
Power :1000W
Luminous Efficiency:160lm/W
Luminous Flux:160000lm
CRI:>70
Beam Angle:25°/60°/90°
CCT :WW:2700-3200K NW:4000-4500K PW:5000-6500K
Operational Condition:Temperature:-30℃~60℃
Humidity:10%~90%RH
IP Rating:IP66
Operation and Storage Condition
· Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
· Input Voltage 100~240V AC, 50/60Hz
· Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
Package
Inner box Size: 650mm×455mm×150mm
Outer box Size: 670mm×470mm×315mm (2 PCS)
Assembly and Installation
·
Assembly-Electricity
· Blue : Neutral
·Brown : Line
·Yellow-Green : Ground
Quality Warranty:
• Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
Shenzhen Leyond Lighting Co.,ltd
Pure Zhao (sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
Web:
www.leyond.com.cn T: +86-755-29816850 ext.8079
Mobile/whatsapp: +86-18675501972
Wechat: 114339263
Skype: pure_made
Email:sales15@leyond.com.cn
Product Tags:
|
|

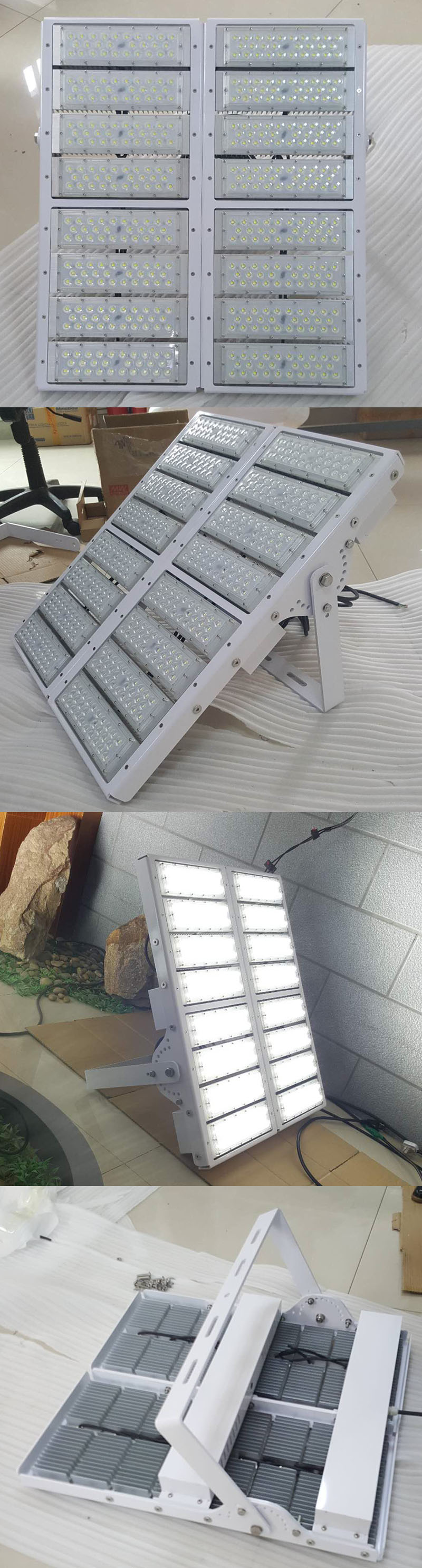

Waterproof High Power 1000w Led Stadium Flood Lights High Efficiency 160lm/W Images
|
