Die Custing Aluminum LED Stadium Light 150W with 160Lm/W High Efficiency for 5 Years Warranty

Product Categories

Shenzhen Leyond Lighting Co.,Ltd.

Contact Now

Name: Die Custing Aluminum LED Stadium Light 150W with 160LmW High Efficiency for 5 Years Warranty
Brand: Leyond
Price: 1 USD

Brand Name : Leyond

Model Number : LY-ST45150XX

Certification : CE ROHS ENEC CB

Place of Origin : China

MOQ : 20

Price : Negociatable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000-30000/month

Delivery Time : 5-8day

Packaging Details : H*W*L

Light source : LED

Ip rating : IP 66

Item type : LED Stadium Light

Warranty(year) : 5

Application : outdoor

Lamp body material : Die Custing Aluminum

Working temperature(℃) : -30 - 60

Lamp luminous efficiency(lm/w) : 160lm/w

Color temperature(cct) : WW:2700-3200K / NW:4000-4500K / PW:5000-6500K

Contact Now

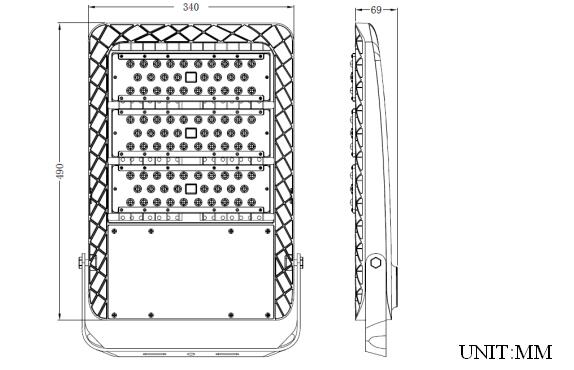

01. Apperance:

Die Custing Aluminum LED Stadium Light 150W with 160Lm/W High Efficiency for 5 Years Warranty

02. Features:

Adoption LEYOND exclusive Lens with light transmittance up to 98%.
There are 25°, 60°, 90° beam angle options for the Lens.
High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
High luminous efficiency, Whole lamp output light efficiency >160LM/W.
Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
Nice appearance and non-fouling properties, Protection class IP66.
Work without strobe, fast transient response；A wide range of working voltage.

03. Specification:

Par NO Parameter	LY-ST45150PW	LY-ST45150WW	LY-ST45150NW
Input voltage	AC90V～305V 50/60HZ
System consumption(W)	150	150	150
Luminous flux(lm)	24000	21000	23250
Chip Brand	LUXEON 5050	LUXEON 5050	LUXEON 5050
Beam Angle	25°,60°,90°	25°,60°,90°	25°,60°,90°
CRI	＞70
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver	MEAN WELL ELG-150 / XLG-150
Luminous efficiency(lm/w)	＞160
Lifespan(hrs)	＞50000
IP Rating	IP66
Dimmable	YES＆NO	YES＆NO	YES＆NO
Size(mm)	540x340x69	540x340x69	540x340x69
Net Weigh(kg)	6.8	6.8	6.8
Package Size(mm)	560370100	560370100	560370100
Package Quantity(Pcs)	1	1	1
Gross Weigh(kg)	8.0	8.0	8.0

04. Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting ,court lighting and so on.

05. Production:

Die Custing Aluminum LED Stadium Light 150W with 160Lm/W High Efficiency for 5 Years Warranty

06. testing

Die Custing Aluminum LED Stadium Light 150W with 160Lm/W High Efficiency for 5 Years Warranty

07. Exhibition:

Die Custing Aluminum LED Stadium Light 150W with 160Lm/W High Efficiency for 5 Years Warranty

08. Our main product:

Die Custing Aluminum LED Stadium Light 150W with 160Lm/W High Efficiency for 5 Years Warranty
