IP66 Waterproof Outdoor LED Flood Lights With Chips plus Meanwell driver
Quick details:
1. Type: Flatpad LED Flood Light
2. Power: 200W
3. Voltage:AC100-240V
4. LED Chip: Lumileds 3030
5. LED driver: Meanwell HLG-240
6. Lumens: 22800lm
7. IP grade: IP65
8. Warranty: 3 Years
Describtion:
Series lamps Include: 10w/30w/50w/70w/100w/150w/200w.
Specification:
| Model No.: | LY-FL39200XX XX stand for CCT |
| Power | 200W |
| Input Voltage | AC100-240V.50/60HZ |
| LED Lighting Souce | Lumileds 3030, 200pcs |
| Power Supply | Meanwell HLG-240 |
| Color Temperature | WW:2700-3200K; NW:4000-4500K;PW: 5500-6500K |
| Luminous Flux | 22800LM |

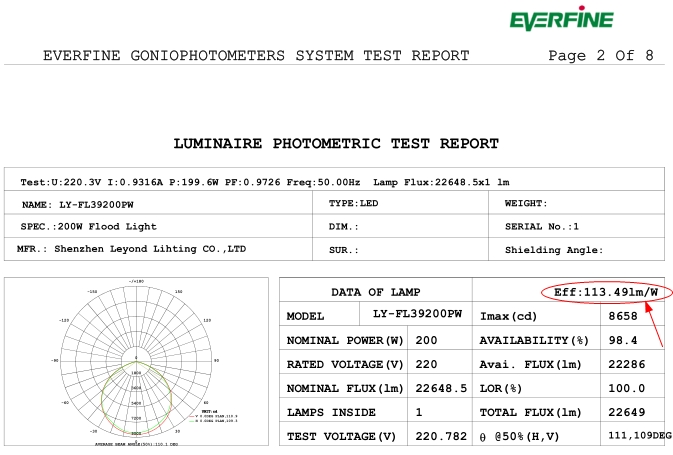

| Lighting Efficiency | >113lm/w test from IES file |
| CRI | 70/80 for Option |
| IP Class | IP65 Waterproof class. |
| Net Weight | 6.5KG |
| Lamp Size | 470X360X60mm |
| Material | Aluminum+GLASS |
| Lifetime | 50000hrs |
| Warranty | 3-5Years |
| Working Environment | -25-45degree for working |
Application Area:
1. Tunnel,Subway, Underground.
2. Gym, Sports Stadium
3. Building, Billboard
4. Gas Station, Garage
5. Park, Garden.
6. Workshop, Factory.
7.Warehouse, Storage.
8. Road, Highway.
9. Yard, Square.
10 Station, Dock,Deck, Ship, Boat.
11. Aquarium etc.
Features:
1. Ultra-slim sleek design, stylish and classic
2. Total 8 model of heat sink, full range from 10W to 200W
3. choose as you like.; Reflector and heat sin integrate,
4. pire aluminum structure for heat dissipation; professional optical design
5. luminous efficiency is increase by 50%;

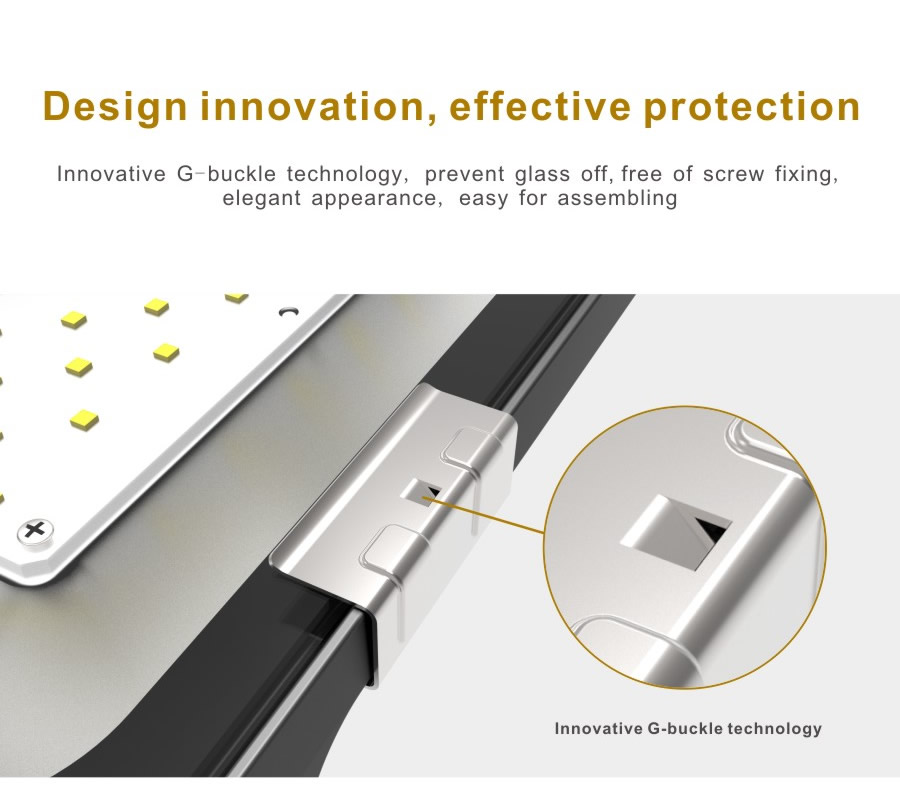

6. Innovative G-buckle technology, prevent glass off, easy for assembling
Our Adantages:
- Integrative design for heat sink and housing,The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.
- The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
- Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
- Use toughened glass and the light transmittance is about 93%.
- VDE/UL listed rubber cable with cold-pressed terminal.
- Safe and easy for installation and maintenance.
- High heat conductivity,low luminous decay,pure light color and no ghosting.
- NO UV and near-IR radiation in the light beam.

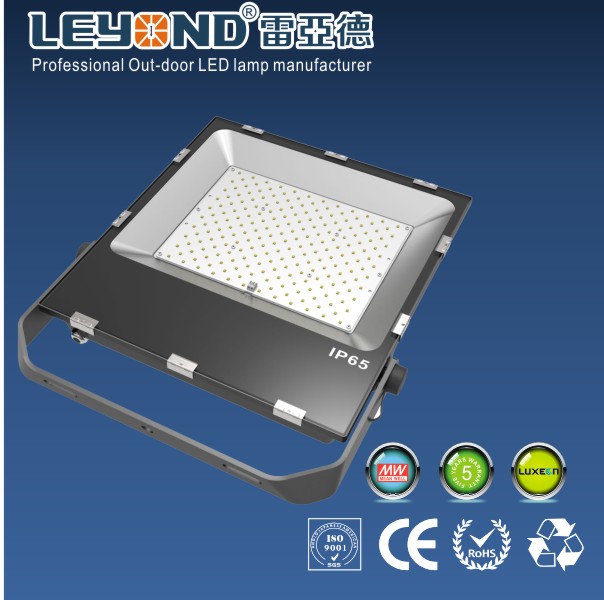

Product Pictures
Thanks for your time. You could contact our sales tearm for more informations.
Contacts: Delina Cao
Email: sales15@leyond.com.cn
Skype: ly-sales15
