3030 Chip high power Outdoor LED Flood Lights with 3 years warranty
Applications:
• Projector / Floodlight
• Tunnel Lighting / Pathway Lighting / Park Lighting
• Signboard Lighting
Features:

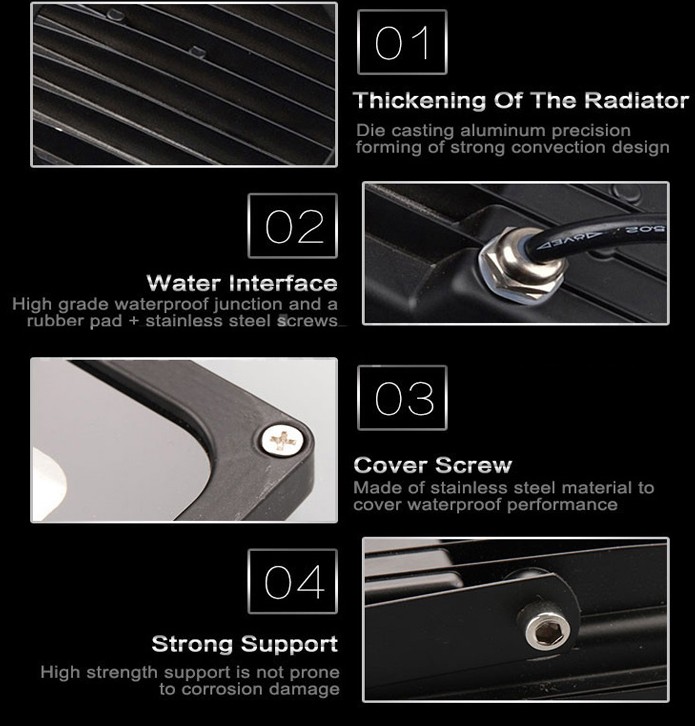

Integrative design for heat sink and housing,The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.
The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
Use toughened glass and the light transmittance is about 93%.
VDE/UL listed rubber cable with cold-pressed terminal.
Safe and easy for installation and maintenance.
High heat conductivity,low luminous decay,pure light color and no ghosting.
NO UV and near-IR radiation in the light beam.
Very low energy consumption,Lower thermal output.
Durable and long life(50000 hours).

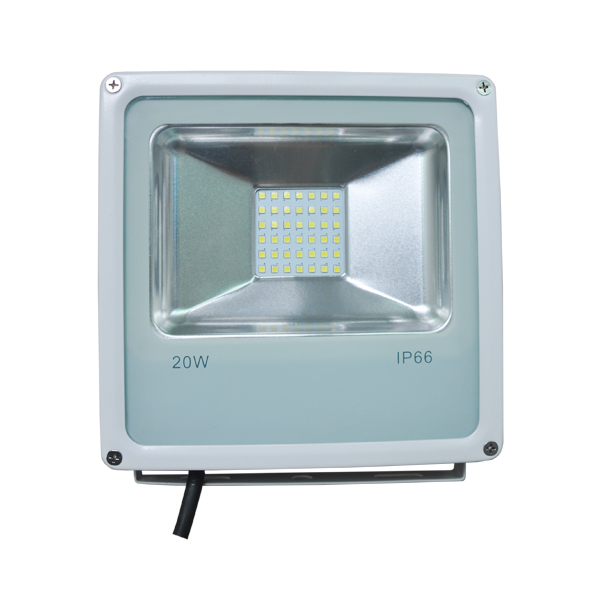

Outlook:
Technical Datas:
| Optical |
| LED Luminance | >2000lm |
| Light Fixture Luminance | >1900lm |
| CCT | 6500±500K |
| CRI | >70 |
| LED | 3030 chips |
| Electrical |
| Input Voltage | 220~240V AC, 50/60Hz |
| Power Consumption | ≦25W (of Total System) |
| Power Factor | ≧0.9 |
| Power Efficiency | >90% |
| EMI Grade | EMI Class A |
| Protection | Over Current/Over Voltage/Thunder Protection |
| Luminance Efficacy | >105lm/W |
| Mechanical and System |
| IP Level | IP65 |
| Dimension | 120 X 220 X 45 mm |
| Net Weight | 1.5 Kg |
| Heat Solution | Convection |
Photometry:
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 3~5m height
Our Services:
1.Factory price, large monthly output
2. 3 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
